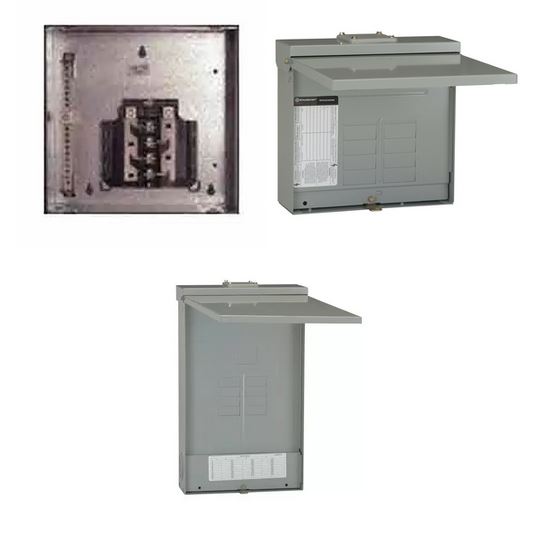

LOAD CENTER 125A 4/8 CURCUIT
he ABB load center includes a non-metallic box for increased durability and reliability. The 1-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified. Highlights
Non-metallic box is maintenance free and corrosion resistant
100% rated split neutral on each side
Accommodates top and bottom feed applications
Full length neutral bars for fast and easy wiring
Single-phase, 3-wire, 125 Amp, 240-Volt maximum, 22K AIC rating
Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers
All neutral holes are rated for 14 - 4 wire
Meets UL and ANSI safety requirements

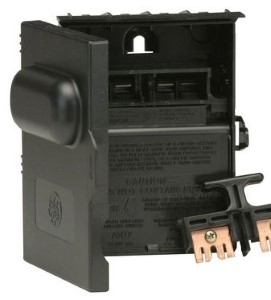

A/C PULLER SWITCH 60A 1PH NEMA
Eaton air conditioning disconnect, Non-fused pullout, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al 60?C or 75?C, NEMA 3R Galvanized Steel enclosure, 10 hp at 240V, ANSI 61 gray
Depth 9 in / 228.6 mm
Number Of Poles 2
Shape Rectangular
Interrupt Rating 10 kAIC
Wire Size #14-3 AWG Cu/Al
Package Configuration Each: 9 IN X 5.5 IN X 2 IN
Net Weight 3 pound
Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications UL Listed, CSA Certified
Operating Temperature Range 60 to 75 deg C
Enclosure Material Galvanized steel
UOM ea
Maximum Load Capacity 3 hp at 120 Volt, 10 hp at 240 Volt
UPC 782113926858
Brand Name Eaton
Product Name Eaton DPU222R 1-Phase Pull-Out AC Disconnect Switch 120/240-Volt AC 60-Amp NEMA 3R
Short Description CH DPU222R 60A 1PH 240V AC NON-FUSE
Long Description Eaton air conditioning disconnect, Non-fused pullout, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al 60?C or 75?C, NEMA 3R Galvanized Steel enclosure, 10 hp at 240V, ANSI 61 gray
Manufacturer Part Number DPU222R
Commodity Code Non-Fusible Disconnect Safety Switches
Size 5.4 in x 3.15 in x 8.7 in
Enclosure NEMA 3R
Amperage Rating 60 A
Country of Origin Mexico
RoHS Indicator C
Special Features Easy-to-remove high strength protective shield makes wiring and mounting easier.|Padlockable door provision increases safety and reduces tampering.|Easy-to-remove front cover (no screws or fasteners to remove) allows easy access.|Easy installation with multiple mounting options and oversized enclosure allows for ample wiring space.|Non-fused pullout and molded case switch devices provide a visible on-off disconnecting means.|Optional Ground Fault or Weather-resistant/Tamper-resistant receptacles are available.
Manufacturer Name Eaton
Application Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Height 2 inch
Voltage Rating 120/240 V
Width 5.5 inch
Gross Weight 3 pound
Type Air conditioning disconnect
Length 9 inch
UNSPSC 39121309
Conductor Size 14-3 AWG Copper/Aluminum
Sub Brand None
Standard UL Listed,CSA Certified
Color Gray
Material Galvanized steel

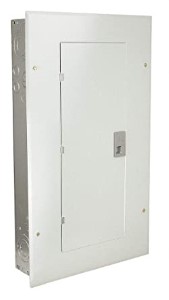

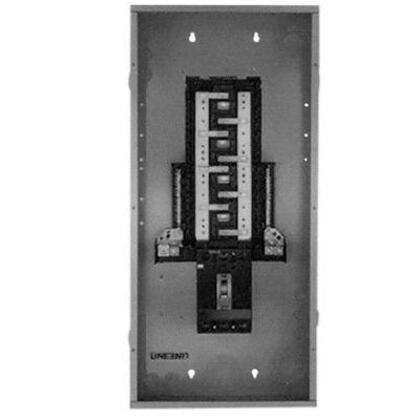

CIRCUIT PANEL INDOOR 200A 40CIR
GE PowerMark Gold(TM) Industrial Solutions Convertible Main Lug Loadcenter, 1-Phase Standard, Series: TLM, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt, 40 Circuits, THQL Breaker, 3-Wire Wiring Configuration, 40 Spaces, 6 AWG to 250 kcmil Wire, Flush Mounting, NEMA 1 Enclosure, NEMA 13 Enclosure Box, 39-3/16 in H x 14 in W x 3-3/4 in D Dimensions
PowerMark(R) Gold(TM) loadcenters lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.

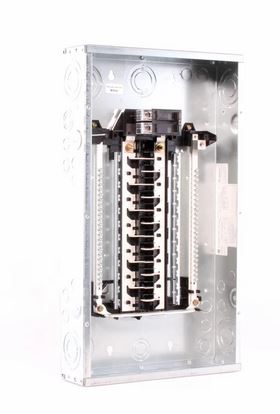

LOADCENTER MAIN LUG INDR 125A
LOADCENTER MAIN LUG INDR 125A
Indoor flush or surface mount with door
Box is significantly smaller and lighter while maintaining optimum wire-bending space
Side mounted main breaker allows top or bottom feed
Sturdy copper bus and galvanized box increase durability and reliability tinplated for corrosion resistance
Minimum 100% neutral terminations
All neutral holes are rated for 14 - 4 AWG wire
Extruded neutrals are easier to wire, reducing installation time and cost
Combination slotted/Robertson screws speed wiring
Powermark gold load centers lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. at the same time, they deliver obvious and significant advances in design, function and quality.

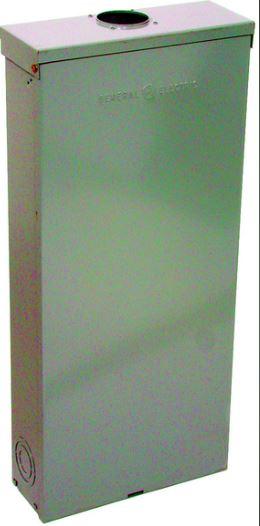

LOADCENTER MAIN LUG OUTDR 125A
LOADCENTER MAIN LUG OUTDR 125A
125a, convertible main lug outdoor, load center, rainproof, 6 - 1 inch spaces or 12 - 1/2 inches single pole spaces, #tgl2p, sku u277387, equipment ground kit when used as service entrance.
